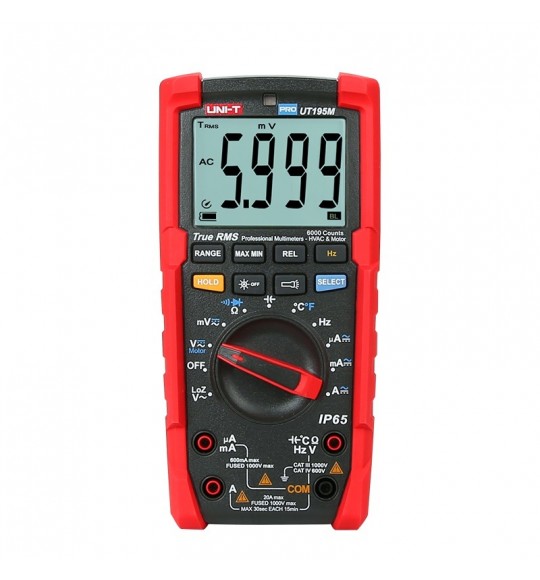

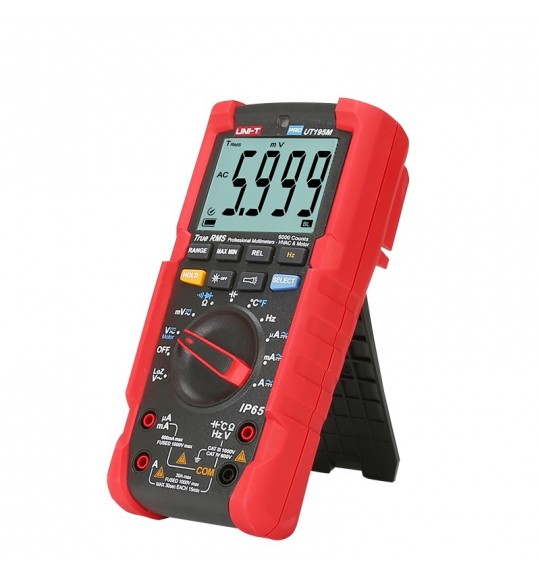

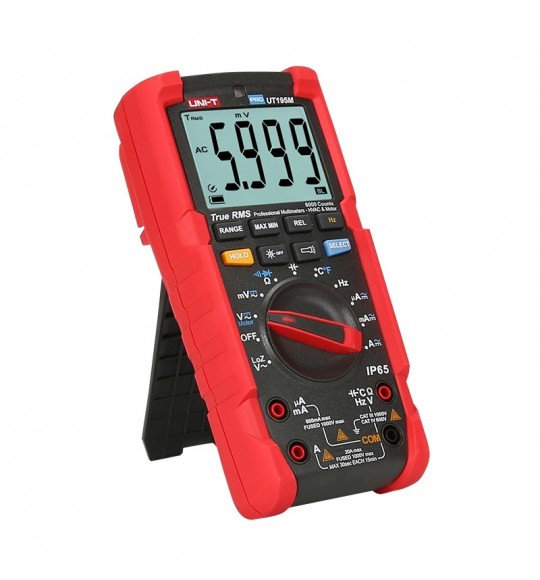

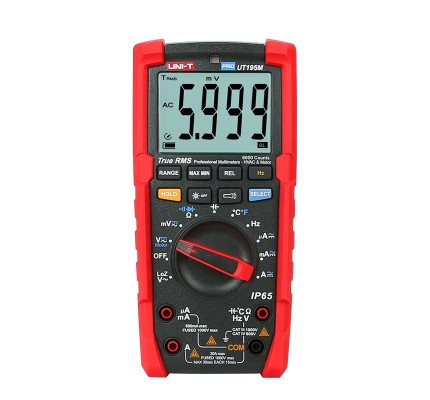

Unit UT195M Dijital Profesyonel Multimetre

%60
indirim

1. IP65 derecelendirmesi, 2m damla delikli, CAT III 1000V, CAT IV 600V

2. Büyük 6000 adet LCD ekran

3. True RMS

4. ACV 750V 5kHz bant genişliği

5. El feneri

6. Işık sensörü tarafından kontrol edilen otomatik LCD arka ışık (kapatılabilir)

7. Hayalet voltaj ölçümü için LoZ voltaj testi

8. 2 problu motor faz sırası ölçümü

9. 20A akım ölçümü (maksimum 30 saniye)

Teknik bilgisi için 2. Sekmeye göz atınız.

Specifications	Range	Best Accuracy
Model	?	UT195M
DC voltage	600mV ~ 1000V	±(0.5%+3)
AC voltage	600mV ~ 750V	±(0.7%+3)
LoZ ACV	600.0V	±(2.0%+3)
DC current (A)	600.0?A ~ 20A	±(0.8%+3)
AC current (A)	600.0?A ~ 20A	±(1.0%+3)
Resistance (?)	600.0? ~ 60.00M?	±(0.8%+2)
Capacitance	6.000nF ~ 60.00mF	±(3%+5)
Frequency	60.00Hz ~ 40.00MHz	±(0.1%+4)
Duty ratio	0.1% ~ 99.9%	N/A
Temperature °C	-40 ~ 1000°C	±(1.5%+4°C)
Temperature °F	-40 ~ 1832°F	±(2.0%+5°F)
Features
Display count	?	6000
Display interface (HTN)	?	Single display
Measurement of digital conversion rate	times/s	3
True RMS	?	?
AC voltage frequency response	?	45 ~1kHz
AC current frequency response	?	45 ~1kHz
Low pass filter test	? (1kHz 3dB attenuation)	?
Diode/Continuity test	?	3V
Auto/Manual range	?
Auto power off	?
Continuity buzzer	?
Low battery indication	?
Data hold	?
MAX/MIN	?
Function selection	?
Flashlight	?
Auto backlight	?
Working temperature	0 °C ~40 °C
2m drop proof	?
Protection rating	IP65
General Characteristics
Power supply	9V 6F22 carbon-zinc or 6LR61 alkaline battery
LCD size	66mm × 51mm
Device color	Red and grey
Device weight	473g
Device size	195mm × 95mm × 58mm

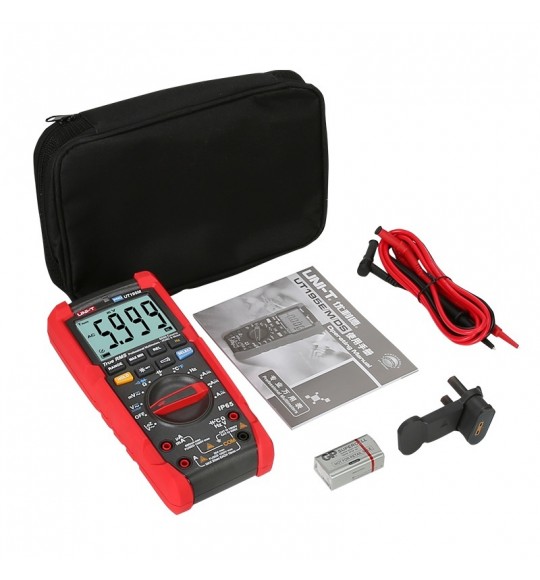

Standard accessories	Test probes, battery, carrying bag
Standard individual packing	Gift box, user manual, point type temperature probe
Standard quantity per carton	6pcs
Standard carton size	580mm × 375mm × 215mm
Standard carton gross weight	?
